Volvo Penta 3581078, Diesel CAV water fuel separator filter

Volvo Penta Diesel CAV Fuel Filter 3581078.

3581078 is a replacement fuel water separator filter, installed between the fuel tank and engine, and known as a CAV filter. The housing is part number 877766 or 877767 or any other CAV type, filter housing.

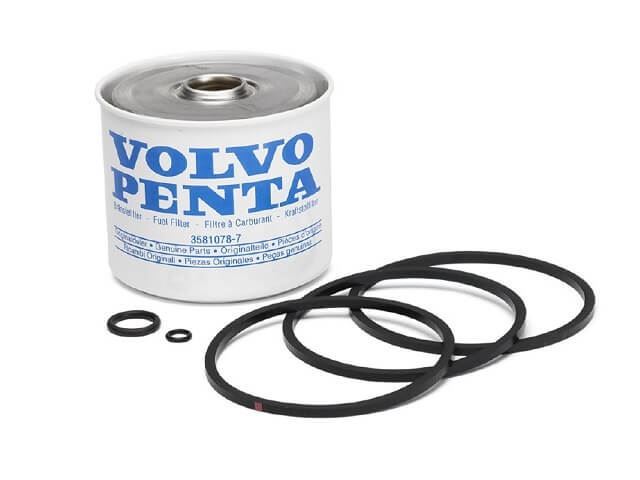

This 3580178 water fuel filter is supplied with 6 O-rings and seals to completely service the fuel water separator. The thick metal casing is also painted with high-build gloss to protect it from corrosion. The superior filter medium used in the 3581078 filters provides 10-micron protection from water and diesel bug contamination.

Compared with many other CAV filters, 3581078 feels much heavier and is specially painted to fully protect the fuel filter.

The Volvo Penta fuel water separator is installed between the fuel tank and the engine. The lower part of the filter has a bowl which shows whether water or other impurities such as diesel bugs are present in the fuel. There is a bottom drain plug to drain out any water or other contamination present. It is therefore easy to detect whether or not water or other impurities have accumulated.

A spare filter should always be carried on board in case the diesel bug or some other blockage occurs. You should also carry a spare impeller with a new gasket.

Volvo Penta Part No: 3581078

For: Filter element for 877766 and 877767 or any CAV filter housing with either a glass or metal bowl.
