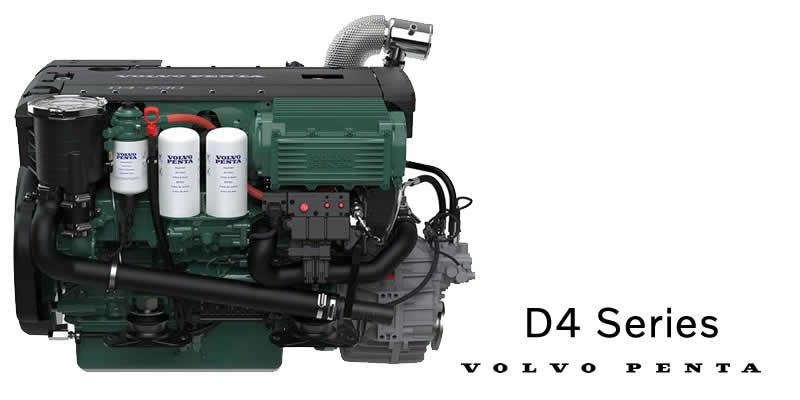

Volvo Penta D4 Series
Technical Specification: Current D4 series diesel range. Four-cylinder, 3.7-litre diesel, 150 hp to 370 hp. The oil capacity is approximately 11- 12.5 litres of VDS 4.5 oil. The coolant capacity for a D4 is approximately 13 litres of either green or VCS yellow coolant. They must not be mixed.
The D4 Volvo Penta diesel is the current model. The Volvo Penta D4 is a 3.7 litre, in-line 4-cylinder fresh water-cooled engine, quiet and environmentally efficient. The new D4 meets emission compliance IMO NOx, EU RCD Stage II, and US EPA Tier 3.
We can supply all parts for the Volvo Penta D4 including the range of D4 series spare parts, oil filters and fuel filters, crankcase breathers, drive belts and impellers, genuine D4 series exhaust elbows, oils and grease. We are also the main Volvo Penta dealer for servicing and technical support.
Volvo Penta D4 genuine service parts are made to exacting standards to withstand the harsh saltwater environment in which marine diesel engines operate. If you need help with any technical issue regarding your Volvo Penta D4, please call us.
The heat exchanger and air cooler on any D4 should be cleaned and all the "O" rings changed, every 5 years to prevent overheating and joint corrosion. Older D4 diesel engines may run on Volvo green coolant and newer ones may be using yellow VCS coolant. Please do not mix or change the coolant type once one or another has been used. If you are running on Volvo Penta green coolant, continue to use green coolant. Mixing yellow and green coolant can cause gelling and blockages within the cooling system.
Volvo Penta Complete Service kit for Volvo Penta D4 using impeller 3588475
£536.55
All prices in the UK include VAT
This offer includes all the genuine Volvo Penta parts to fully service a D4 using impeller 3588475.
Volvo Penta Complete Service kit for Volvo Penta D4 using impeller 24139377
£536.55
All prices in the UK include VAT
This offer includes all the genuine Volvo Penta parts to fully service a D4 using impeller 24139377 (21951356).
Volvo Penta service kit for Volvo Penta D4 -MY2019, Part Number 21704968
£317.52
All prices in the UK include VAT
Contains the oil filter and fuel filter, crankcase breather filter and air filter as well as the impeller and all necessary gaskets.
Volvo Penta fuel filter insert, part number 861014
£18.24
All prices in the UK include VAT
Volvo Penta 10-micron fuel filter insert for the Volvo Penta fuel and water separator. This insert may have 2010TM on the top to help identify it.
Volvo Penta 10 micron fuel filter insert twin pack, part number 861014
£33.79
All prices in the UK include VAT
Volvo Penta 10-micron fuel filter inserts twin pack for the Volvo Penta fuel and water separator. This insert is 78 mm by 70 mm high and may have "Racor 2010TM" on the top to help identify it.
Racor 2010TM diesel fuel filter insert - Parker Racor
£12.99
All prices in the UK include VAT
Racor 2010TM diesel fuel filter insert with replacement seal for the Racor 500 turbine series and Volvo Penta fuel and water separator, part number 877762. This insert is 78mm diameter by 70mm high and may have 2010TM on the top in blue writing to help identify it.
Racor 2010TM diesel 10 micron fuel filter insert twin pack
£25.00
All prices in the UK include VAT
Racor 2010TM diesel fuel filter insert with replacement seal for the Racor 500 turbine series and Volvo Penta fuel and water separator, part number 877762. This insert is 78mm diameter by 70mm high and may have 2010TM on the top in blue writing to help identify it.
Volvo Penta D4 and D6 Diesel Oil Filter, Part Number 22030848
£36.94
All prices in the UK include VAT
Genuine Volvo Penta D4 and D6 Diesel Oil Filter.
Volvo Penta D4 D6 Diesel By Pass Oil Filter, P/N 22030852
£36.29
All prices in the UK include VAT
Genuine Volvo Penta Diesel By-Pass Oil Filter for all D4 and D6 diesel engines.
Volvo Penta D4, D6 and D9 Crankcase Breather, Part Number 3584145
£99.68
All prices in the UK include VAT
This crankcase breather 3584145helps to protect the operation of the D4 and D6 range of diesel engines
Volvo Penta D4, D6, D9 and D11 series Air Filter, Part Number 21702999
£56.59
All prices in the UK include VAT
Genuine D4, D6, D9, and D11 Series Air Filter
Volvo Penta thermostat, Part Number 23594887
£245.16
All prices in the UK include VAT
Volvo Penta thermostat for some D6 and D4 engines.
