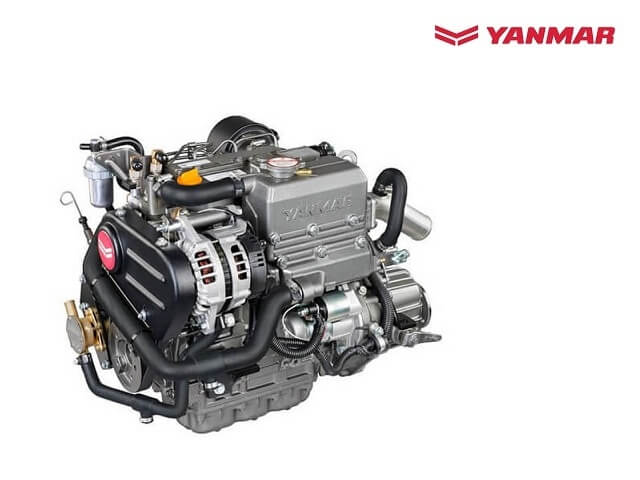

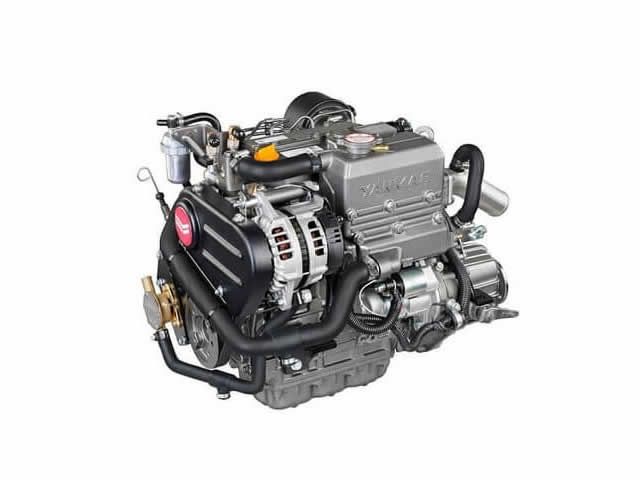

The 3YM30AE is the replacement engine for the 3GM30 and 3GM30F. The 3YM30AE is also available with a Saildrive option.
Yanmar's 3YM30AE is a freshwater-cooled 29 hp diesel, complete with an exhaust mixing elbow [L-type] and an alternator 12V - 125A, a B20 panel, flexible mounts, an expansion tank for the freshwater cooling system, an electric stop solenoid, and a multi V belt with a safety cover.
3YM30AE Specification:
3-cylinder compact diesel
Rated at 29.1 mhp at 3200 rpm (21.3 kW at 3200 rpm)
125 amp alternator (12 Volt)
Dry weight without alternator: 127 KG
Emission compliance: EU: RCD 2, BSO II, EMC US: EPA Tier 3, EPA-C
Click here for the 3YM30AE specification sheet
Click here for the 3YM30AE measurement sheet
Options list:
Installation service
High-riser mixing elbow (instead of L-elbow)
Extension wire harness (4 m standard or 6 m option)
Dual harness (for 2nd station)
TFX side-mount control head
Hot water kit for calorifier with cocks
Extension saildrive leg (50 mm), propeller cone nut kit SD25
An on-board spare parts kit
When purchasing any engine, it's prudent to talk to us prior to ordering so that we can make sure the order includes any options that may be required to complete the installation.
Please note that any installation must comply with Yanmar standards for installing a new engine, including checking the seacock diameter and condition, correct exhaust installation, wiring and anti-syphon if required, to comply with warranty conditions set out by Yanmar Group. We can advise on specifics if required to smoothly achieve a full warranty from Yanmar on installation.
