Technical Specification: Current D1-20 series compact diesel range.
18.8 hp at 3200 rpm
Oil capacity, 2.8 litres of VDS3 oil
Coolant capacity: 3.0 litres plus calorifier

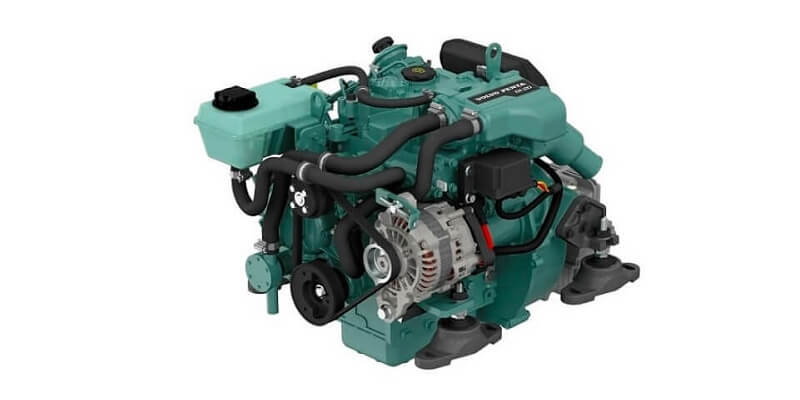

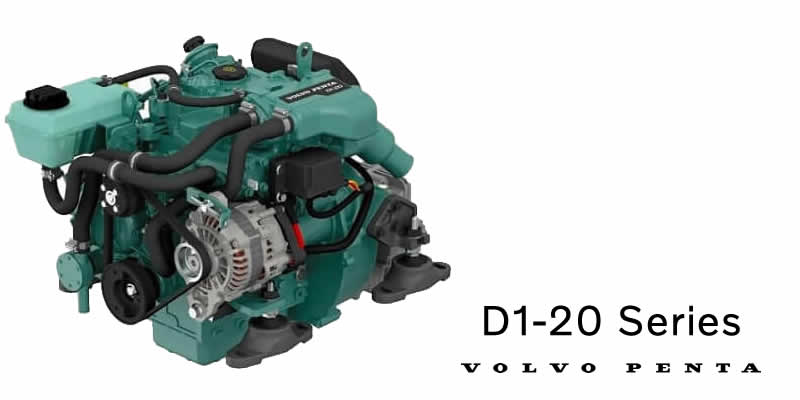

The D1-20 Volvo Penta diesel is the current model. The Volvo Penta D1-20 is a 3-cylinder fresh water-cooled engine, compact, quiet and environmentally efficient. This D1-20 meets BSO, EU RCD Stage II, US EPA Tier 3 emissions.
We can supply all parts for the Volvo Penta D1-20 including a range of D1-20 series spare parts, oil filters and fuel filters, drive belts and impellers, genuine D1-20 series exhaust elbows, oils and grease. We are also main Volvo Penta dealers.
Volvo Penta D1-20 genuine service parts are made to exacting standards to withstand the harsh saltwater environment in which marine diesel engines operate. If you need helps with any technical issue regarding your Volvo Penta D1-20, please call us.
The heat exchanger on any D series should be cleaned and the 4 "O" rings changed, every 5 years to prevent overheating. The exhaust elbow should also be removed every few years especially if the engine is run for extended periods on low revs as there could be a build-up of carbon within the exhaust elbow. The exhaust elbow should be checked and or changed after about 10 years due to possible corrosion build-up within the saltwater jacket around the outer casing of the exhaust elbow.
Older D1-20 diesel engines may run on Volvo green coolant and newer ones may be using yellow VCS coolant. Please do not mix or change the coolant type once one or other has been used. If you are running on Volvo Penta green coolant, continue to use green coolant. Mixing yellow and green coolant can cause gelling and blockages within the cooling system.
Contains the oil filter and fuel filter, as well as the impeller and all necessary gaskets
Volvo Penta 3581078 is a replacement fuel water separator filter, installed between the fuel tank and engine, and known as a CAV filter. The filter housing this filter fits is either part number 877766 or 877767 or any other CAV type, filter housing.
This is a twin pack for 3581078, replacement CAV water fuel separator filters, part number 3581078 installed between the fuel tank and engine. Fits filters 877766 and 877767 or any CAV filter housing.
An oil suck-out tube, replacement rubber cap, Part Number 1276516. This is a replacement oil suck out rubber cap for the oil suck-out tube coming out of the sump.
