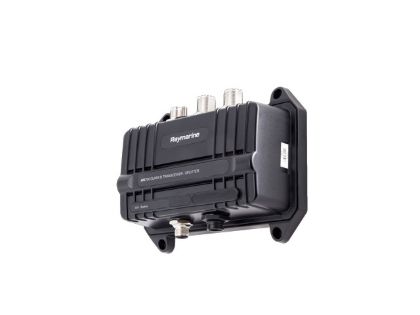

Raymarine AIS700 Class B Transceiver With Integrated Splitter - refurbished

Raymarine AIS700 AIS Class B Automatic Identification System (AIS) transceiver, designed for use with Raymarine multifunction navigation display systems. This AIS700 receives broadcasts from other vessels and transmits your boat’s information, helping you to be seen on other vessels’ systems.
SKU: E70476-refurb
Retail Price: £1,195.00
You Pay: £806.63

All prices in the UK include VAT

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 receives broadcasts from other vessels and transmits your own boat’s information, helping you to be seen on other vessels’ systems. This AIS is easy to install and connect to your existing system. It provides information on other vessels around you including their heading and speed. This information can be displayed on your multifunction display or via an instrument such as an I70S display. (I70S not included)

In the box is:

AIS700
GNSS antenna
Power/data cable 2m (6.56 ft)
VHF Radio cable 1m (3.28 ft)
DeviceNet to SeaTalkng ® adaptor cable 1m (3.28 ft)
GNSS antenna gasket
GNSS antenna pole mount
Unit fixings (4 x No.8x19 self tapping screws)
M5 nut and washer (grounding)
Documentation
GNSS antenna fixings (3 x M3x40 stud and thumb nut)
Software CD

Click here for the AIS700 installation instructions and manual

Raymarine part number: E70476-refurb

ENVIRONMENTAL SPECIFICATIONS

Operating temperature-15°C to +55°C
Storage temperature-20°C to +75°C
Water ingressIPX6 and IPX7
HumidityUp to 93% @ 40°C



POWER SPECIFICATIONS

Power Supply12v and 24 nominal
Power Consumption<3W
Peak current3A
Load Equivalency Number1 LEN



RF SPECIFICATIONS

DSC ReceiverImplemented by time sharing with one TDMA receiver
Receiver 1 band156.025 MHz to 162.025 MHz (in 25KHz steps)
Receiver 2 band156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter band156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter specificationTo meet IEC 62287-2 relevant sections
Receiver specificationTo meet IEC 62287-2 relevant sections
Transceiver specificationTo meet IEC 62287-2 relevant sections
GPS receiveru-blox MAX-M8W
GPS receiver channels72 channels
GPS Cold start acquisition time26s nominal
Positional sourceGPS & GLONASS
AIS performance5W SOTDMA



ANTENNA SPLITTER SPECIFICATIONS

Operating frequency range156.0MHz to 162.025MHz Transmitting
156.0MHz to 174.0Mhz Receiving
Insertion loss AIS RX path0dB
Insertion loss AIS TX path<1dB
Insertion loss VHF RX path0dB
Insertion loss VHF TX path<1dB
Power handling AIS portMaximum 5W input
Power handling VHF port25W input
Switching time RX to VHF TX10uS Max
Switching time RX to AIS TX10uS Max
Switching time VHF TX to AIS TX10uS Max
Switching time any TX to RX10uS Max
VHF port impedance50 Ohms
AIS port impedance50 Ohms
Antenna port impedance50 Ohms
VHF to AIS port isolation>28dB (both directions)
Minimum VHF input power for switching400mW



EXTERNAL CONNECTIONS

VHF antenna connector typeSO-239 co-axial
VHF radio connector typeSO-239 co-axial
GNSS antenna connector50Ω TNC co-axial
NMEA2000DeviceNet male
USBMicro-B
External interface isolationNMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification.
NMEA0183 interface 1 (MFD connection)NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
NMEA0183 interface 2 (NMEA0183 instrument connection)NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
USB interface (PC connection)Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud
