Technical Specification: Current D3 series diesel range. Five-cylinder, 2.4 litre diesel, 110 hp to 220 hp. Oil capacity approximately 8 litres of VDS3 oil.

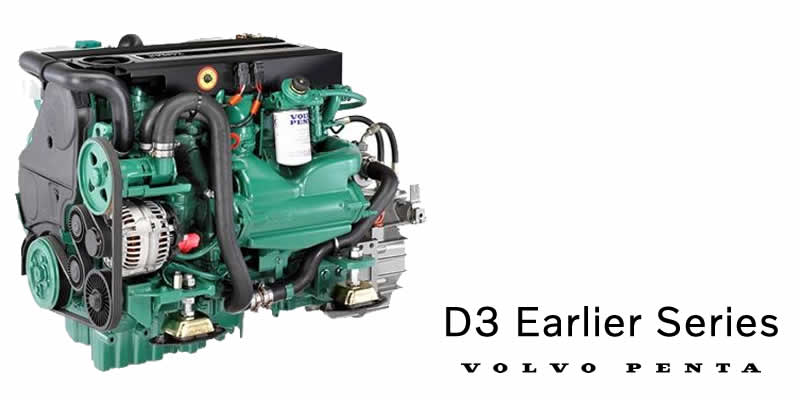

The D3 Volvo Penta diesel range is defined by earlier and later variants. Therefore some parts including impellers change part number between earlier models and the latest variants. The Volvo Penta D3 is a 5-cylinder, fresh water-cooled engine, quiet and environmentally efficient. The new D3 meets IMO NOx (D3-200 & D3-220), EU RCD Stage II, US EPA Tier 3 emissions.
We can supply all parts for the Volvo Penta D3 including the range of D3 series spare parts, oil filters and fuel filters, crankcase breathers, drive belts and impellers, genuine D3 series exhaust elbows, oils and grease. We are also main Volvo Penta dealers for servicing and technical support.
Volvo Penta D3 genuine service parts are made to exacting standards to withstand the harsh saltwater environment in which marine diesel engines operate. If you need helps with any technical issue regarding your Volvo Penta D3, please call us.
The heat exchanger on any D3 should be cleaned and the "O" rings changed, every 5 years to prevent overheating.
Older D3 diesels may run on Volvo green coolant and newer ones may be using yellow VCS coolant. Please do not mix or change the coolant type once one or other has been used. If you are running on Volvo Penta green coolant, continue to use green coolant. Mixing yellow and green coolant can cause gelling and blockages within the cooling system.
Volvo Penta Service Kit for Early D3 Series, containing the oil filter and fuel filter, as well as the impeller and all necessary gaskets
Volvo Penta 10-micron fuel filter insert for the Racor 500 GPH and Volvo Penta fuel and water separator, part number 877762 for larger yacht and motorboat engines
Volvo Penta 3581078 is a replacement fuel water separator filter, installed between the fuel tank and engine, and known as a CAV filter. The filter housing this filter fits is either part number 877766 or 877767 or any other CAV type, filter housing.
This is a twin pack replacement CAV water fuel separator filter, part number 3581078 installed between the fuel tank and engine for filters 877766 and 877767 or any CAV filter housing.
An oil suck-out tube, replacement rubber cap, Part Number 1276516. This is a replacement oil suck out rubber cap for the oil suck-out tube coming out of the sump.
Volvo Penta Early D3 air filter P/N 21646645. This air filter 21646645 is also used on some AD31, AD41 engines. This is the round air filter and not the square version
